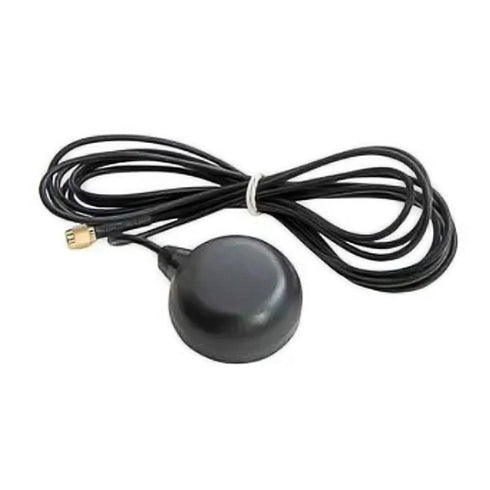

GNSS Antenna RTK

Manufacturer: Movella

Manufacturer No: ANT-GNSS-RTK

Datasheet: MTi Cables: ANT-GNSS-RTK

Description:

The supplied GNSS antenna in the MTi-670G/680G Starter Kit.

Ideal for dual frequency positioning where minimizing weight is important, the 52-gram ANT-GNSS-RTK provides excellent axial ratio and tight Phase Centre Variation (PCV).

The ANT-GNSS-RTK features a precision tuned, circular dual feed, stacked patch element. The signals from the two orthogonal feeds are combined in a hybrid combiner, amplified in a wide-band LNA, then band-split for narrow filtering in each band and further amplified prior to recombination at the output.

The ANT-GNSS-RTK also includes an LNA pre-filter that provides enhanced protection against high level sub-harmonic signals like LTE and near frequency signals such as WiFi.

The ANT-GNSS-RTK is housed in an industrial-grade weather-proof enclosure that can be surface mounted via magnet or adhesive material.

Other Specifications:

• Covering GPS/QZSS L1/L2, GLONASS G1/G2/G3, Galileo E1/E5b, BeiDou B1/B2, as well as SBAS (WAAS/EGNOS/GAGAN/MSAS)
• Tight Phase Center Variation
• Low current: 12 mA typ.
• IP67, REACH and RoHS compliant
