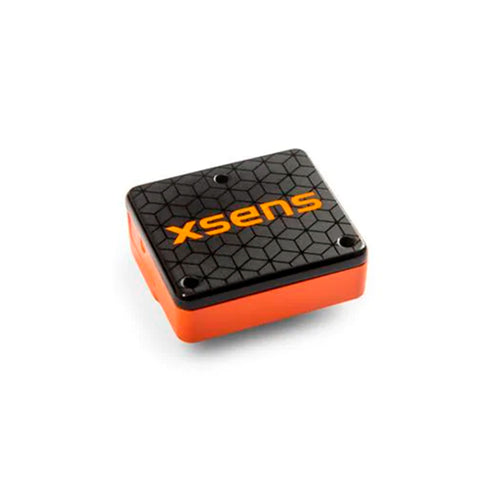

MTi-670 GNSS/INS Support Module

Name: MTi-670 GNSS/INS Support Module
Brand: Movella
SKU: MTi-670
Price: 2640.79 AUD
Availability: InStock

SKU: MTi-670

VENDOR: Movella

$2,640.79

Notes

Pickup available at 7A Kent Street

Usually ready in 4 hours

Share:

PRODUCT INFORMATION

Manufacturer: Movella

Manufacturer No: MTi-670

Datasheet: MTi-670 GNSS/INS

Description:

Small IP52 GNSS/INS Support Module
Interfaces: UART, CAN, RS232
Protocols: Xbus, ASCII (NMEA) or CAN
Output frequency: 1kHz, 400Hz SDI
0.2 deg roll/pitch & sub-meter level position
accuracy
Connects to external GNSS receiver

More Information

The MTi-670 is a GNSS/INS with a small form-factor design for deep integration into your application. Building on the proven MTi 600-series technology it enables a robust and easy to use sub-meter level positioning and orientation tracking. If features a interface to an external GNSS receiver so you can efficiently design your application. It is designed for easy integration and seamless interfacing with other equipment. The
MTi-670 is supported by the MT Software Suite which includes MT Manager (GUI for Windows/Linux), SDK, example codes and drivers for many platforms.

Learn more about MTi-600 Series

This item is on backorder. Please allow for an additional 2-3 weeks from the estimated shipping time.
