MTi-630R AHRS Module

SKU: MTi-630R

VENDOR: Movella


Pickup available at 7A Kent Street

Usually ready in 4 hours

MTi-630R AHRS Module

Default Title


Manufacturer: Movella

Manufacturer No: MTi-630R

Datasheet: MTi-630R


AHRS Module
Interfaces: UART, CAN, RS232
Protocols: Xbus, ASCII (NMEA) or CAN
Output frequency: 1kHz, 400Hz SDI

More Information

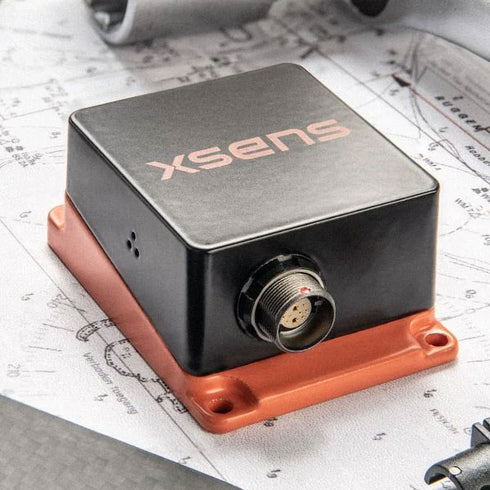

The MTi-630R is an Attitude and Heading Reference System (AHRS) with a rugged housing featuring IP68 protection against environmental influences.
The MTi-630R supports all features of the MTi-610 and MTi-620, and in addition is a full magnetometer-enhanced AHRS. In addition to the roll and pitch, it outputs a true magnetic North referenced yaw (heading) and calibrated sensors data: 3D acceleration, 3D rate of turn, 3D orientation and velocity increments (∆q and ∆v) and 3D earth-magnetic field data. The raw sensor signals are combined and processed at a high frequency to produce a real-time data stream with device’s 3D orientation (roll, pitch and yaw) up to 400 Hz.

Learn more about MTi-600 Series
