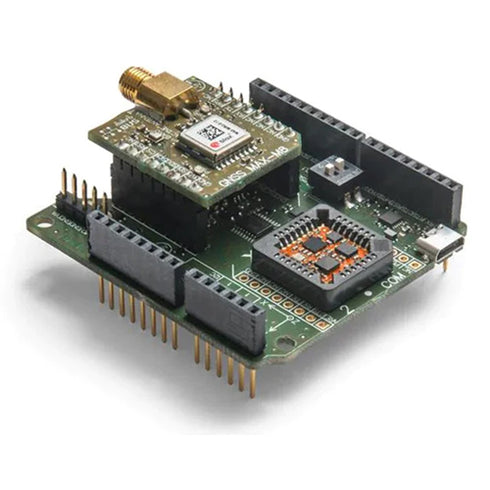

MTi-7 GNSS/INS Development Kit

Manufacturer: Movella

Manufacturer No: MTi-7-0I-DK

Datasheet: MTi-7-0I

GNSS/INS Support Module
Interfaces: UART, SPI, I²C
Protocols: Xbus, NMEAin
Output frequency: up to 2kHz

DK Includes:

• Shield board
• MTi-7 module (in the socket)
• GNSS daughter card
• GNSS antenna
• USB cable

More Information

The MTi-7 is a miniature GNSS/INS as a 12.1 x 12.1 mm module with an interface to an external GNSS receiver. The Xsens optimized strapdown algorithm (AttitudeEngineTM) performs high-speed dead-reckoning calculations at 1 kHz allowing accurate capture of high frequency motions. Xsens’ industry-leading sensor fusion algorithm provides high accuracy and sensor auto-calibration in a cost-effective module for a wide range of (embedded) outdoor applications. It relieves users from the design, integration and maintenance of gyroscopes, accelerometers and other sensors.

Learn more about Xsens MTi-1 Series
