Out stock

MTi-8 RTK GNSS/INS Development Kit

SKU: MTi-8-0I-DK

VENDOR: Movella


Pickup available at 7A Kent Street

Usually ready in 4 hours

MTi-8 RTK GNSS/INS Development Kit

Default Title


Manufacturer: Movella

Manufacturer No: MTi-8-0I-DK

Datasheet: MTi-8-0I

Miniature form factor (12x12 mm)
Cm-level accuracy

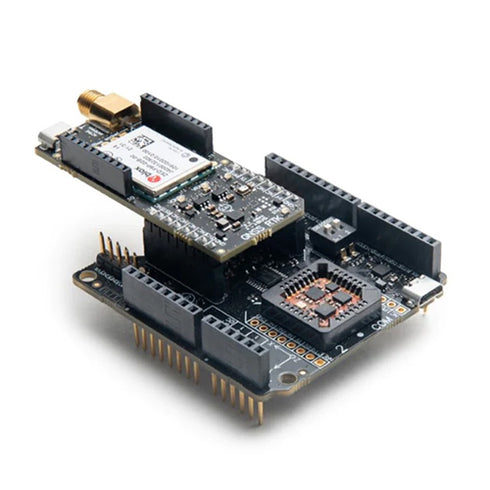

  • Shield board, including MTi 1-series module (MTi 1-s)
  • GNSS RTK daughter card: u-blox ZED-F9P GNSS receiver (default)
  • GNSS antenna
  • USB cable

More Information

The MTi-8 is a cm-level GNSS/INS as a 12.1 x 12.1 mm module with an interface to an external GNSS receiver. The Xsens optimized strapdown algorithm (AttitudeEngineTM) performs high-speed dead-reckoning calculations at 1 kHz allowing accurate capture of high frequency motions. Xsens’ industry-leading sensor fusion algorithm provides high accuracy and sensor auto-calibration in a cost-effective module for a wide range of (embedded) outdoor applications. It relieves users from the design, integration and maintenance of gyroscopes, accelerometers and other sensors.

Learn more about Xsens MTi-1 Series

This item is on backorder. Please allow for an additional 2-3 weeks from the estimated shipping time.
